Bill Gowen’s Cat I Record Setting F1M

In Uncategorized on March 19, 2014 by nicholasandrewray

Bill Gowen’s Cat I Record Setting F1M

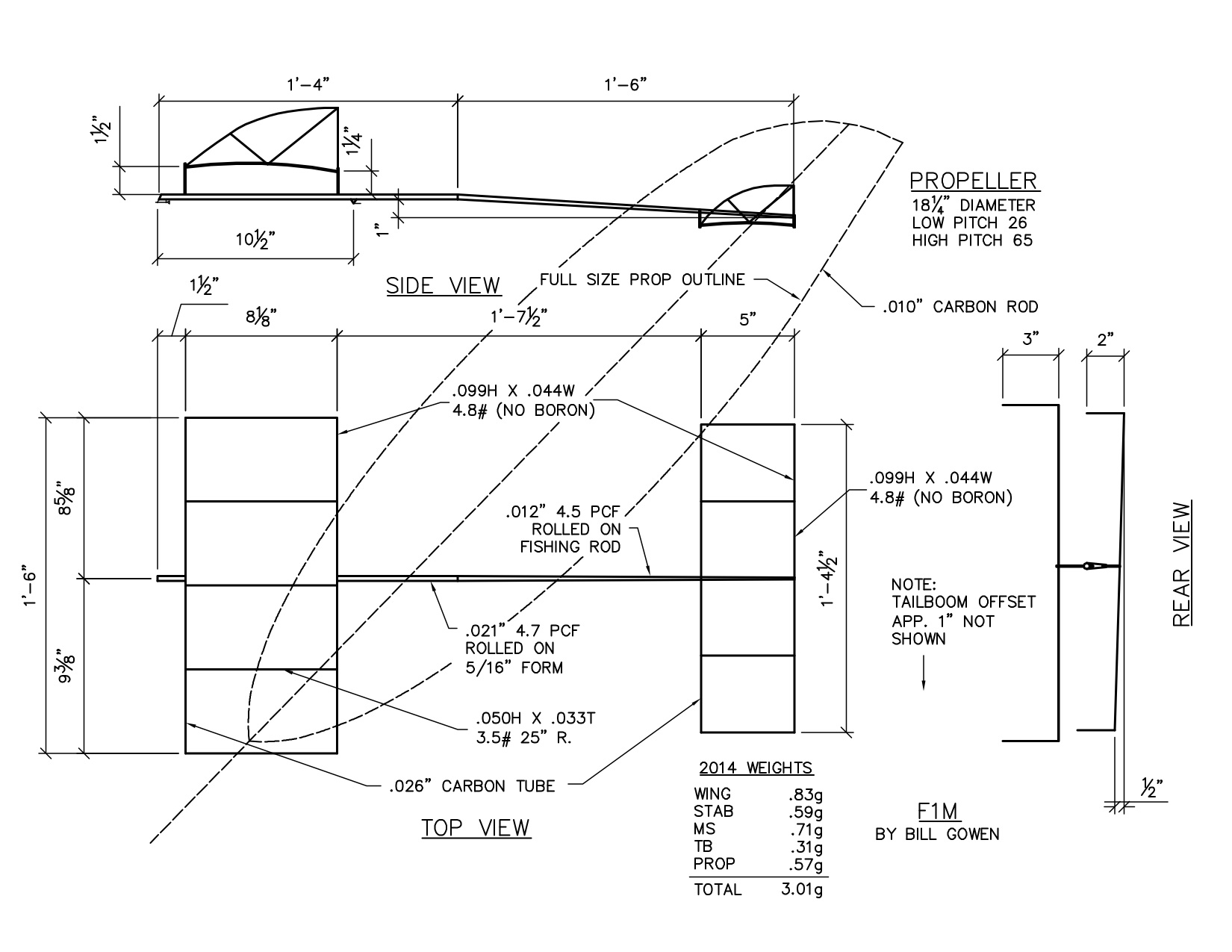

F1M 2014 Plan

Click here to download a PDF of Bill’s plan.

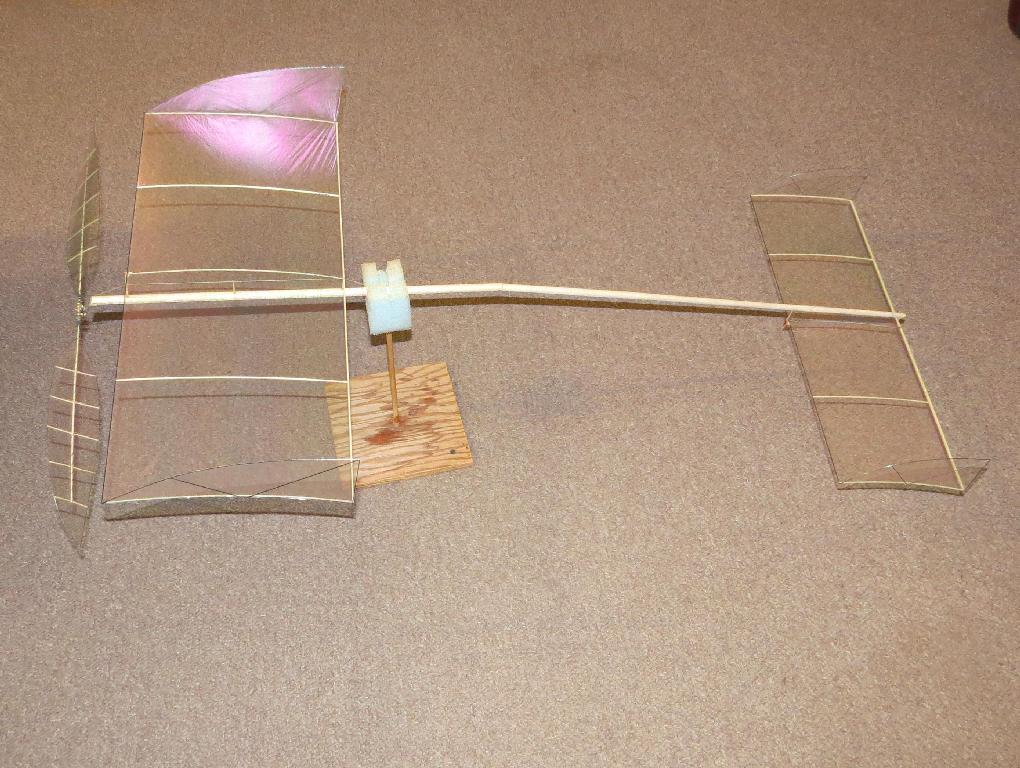

F1M 2014

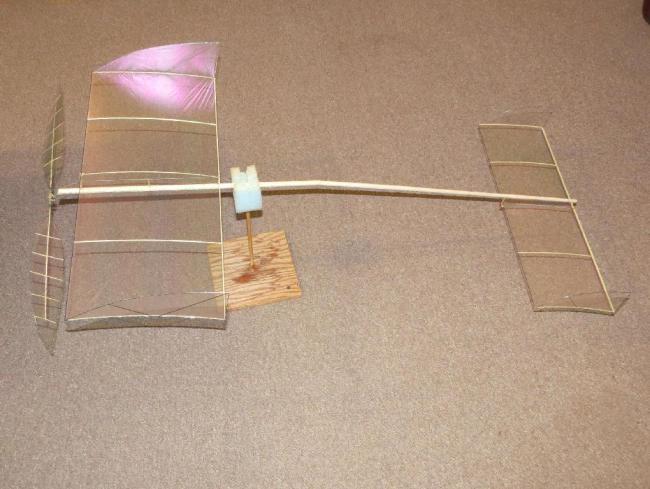

F1M 2014

F1M 2014 Prop

Front view of prop

Construction Photos

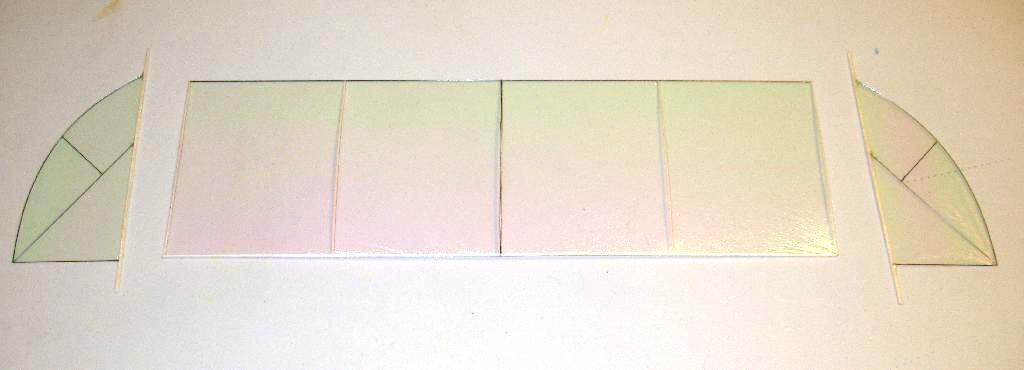

1 stab parts

Stab before tip-plates are attached

2 left stab tip plate attached

Left stab tip-plate attached

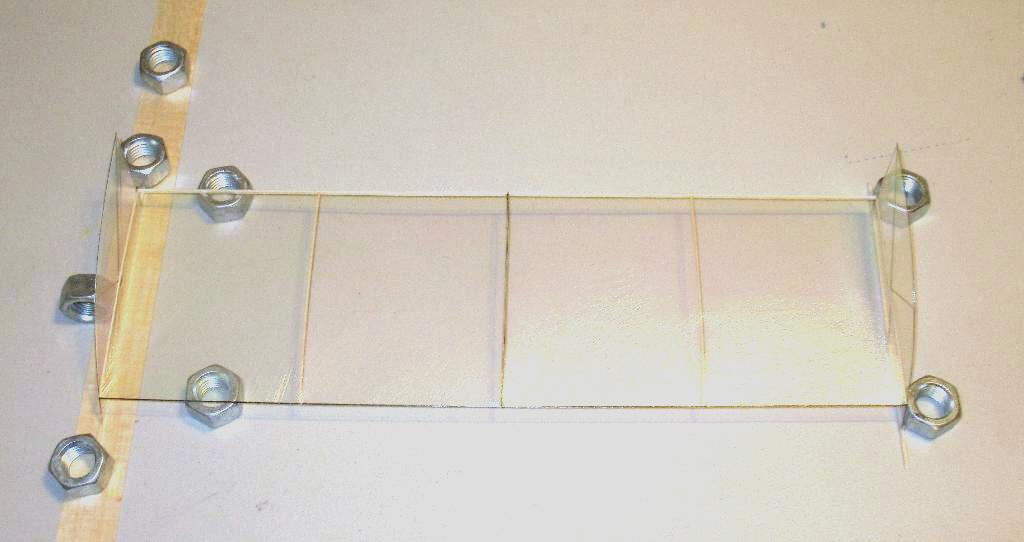

3 right stab tip plate attached

Right stab tip-plate attached

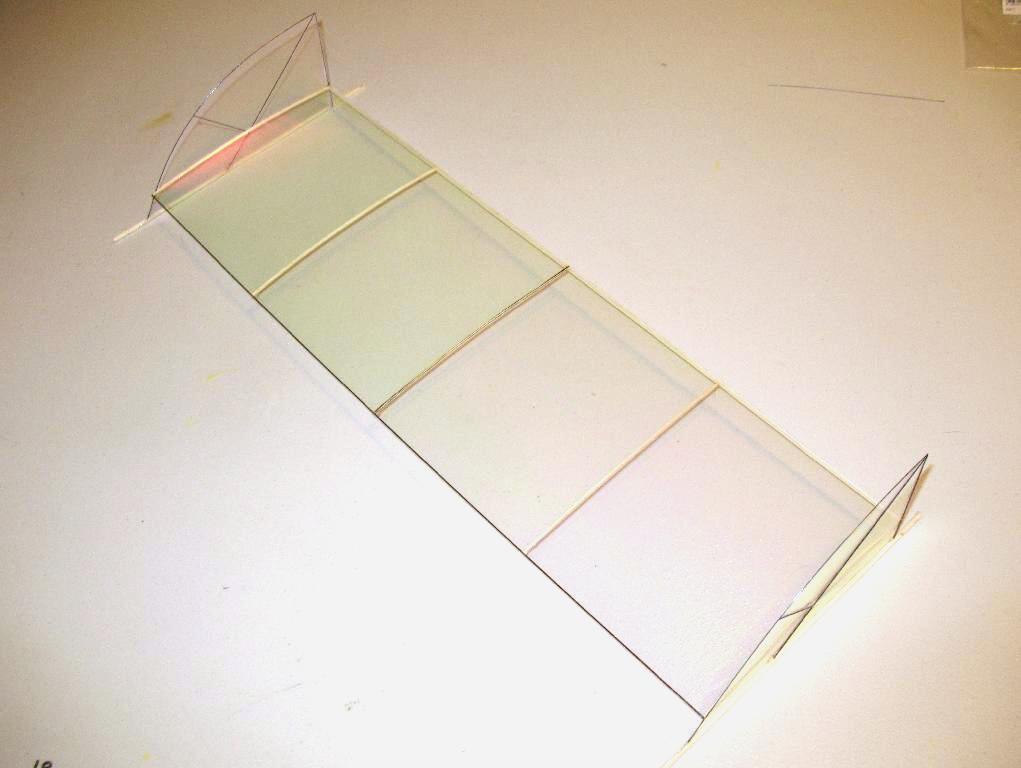

4 stab before tip plate trim

Both tip-plates attached before trimming

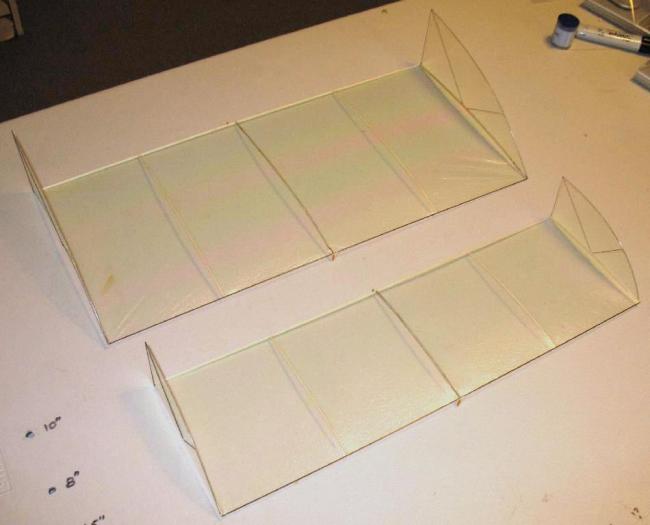

7 finished wing and stab

Finished wing and stab

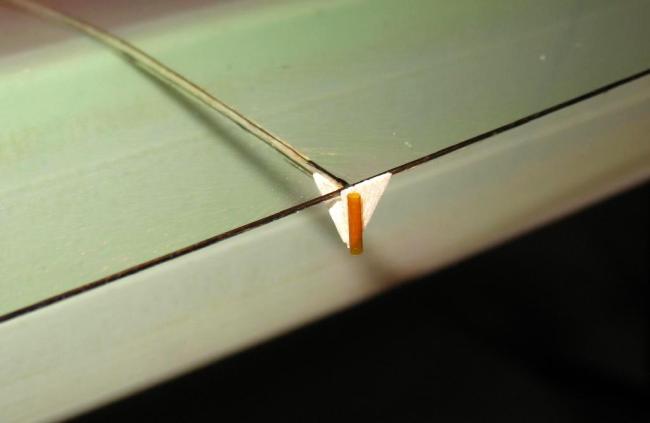

5 front stab tube mounted

Front stab tube mounted
