Nick Ray’s AMA Cat I Record F1D

In Uncategorized on May 23, 2014 by nicholasandrewray

Nick Ray’s AMA Cat I Record F1D

Ray F1DClick here to download a PDF of the plan.

Materials List RevisedClick here to download a PDF of the materials list.

Notes on the Flight

The Cat I record flight was the product of my redeveloped F1D program, which began after the 2012 World Championships in Belgrade, Serbia. I incorporated Lutz Schramm’s work on drag reduction and Ivan Treger’s work on VP design. I chose to design the tail using the guidelines Martin Simon suggests in his book, Model Aircraft Aerodynamics. Mainly, when using a lifting tail, one should design it with all of the considerations due a wing. Although, visually, the model may appear to need a rudder, there is enough dihedral in the tail to facilitate a tight left turn.

Mark Bennett’s 2008 record notes also proved invaluable when trimming the model. I use a spring with 3.5 turns of 0.008″ music wire on a 0.039″ / 1 mm mandrel. This spring allowed me to keep the model off the ceiling for the majority of the flight. Generally, the model reached the ceiling around 4 minutes and continued to climb until approximately six minutes. The model then gradually descended to approximately 12 feet from the floor until 14 minutes, when the model began its second climb. The model climbed back to the ceiling, reaching ceiling height at approximately 17 minutes. The model began its final descent approximately 24 minutes into the flight.

This flight profile would not have been possible without outstanding rubber. I have tried several batches, but only May 99 has been able to deliver a strong second climb. The record flight was made on the third wind of a 9” loop of May 99. I was able to wind to 0.55 in-oz with 1650 turns, and back off to 1625 turns at 0.4 in-oz. I landed with 325 turns. The flight averaged 45.9 RPMs with a minimum of 34 RPMs before the propeller started to change, and a maximum of 53 RPMs during the final climb.

The day of the record flight was very humid and had a high of 75° F. I think warmer, drier weather may lead to slightly improved times. Furthermore, a stiffer spring may allow for the model to stay at the ceiling for the entirety of the flight, rather than wasting energy on multiple climbs. Another direction to explore would be sparless propellers. I have not had much luck with shorter motors, so for the time being I may be stuck with landing with several hundred turns.

l would like to thank Bill Gowen for drafting the plan for the model. He did a superb job rendering the complex curves.

~Nick Ray



photo-2 copy 3

Top View, Taken after the Cat I Record Flight


Side View, Taken at the completion of construction

Mike Kirda generously made CAD drawings of my rib templates.

RayTemplates

Click here to download a PDF of the templates.

Advertisements

Statuses

2014 Otto Hint’s Memorial

In Uncategorized on May 9, 2014 by nicholasandrewray

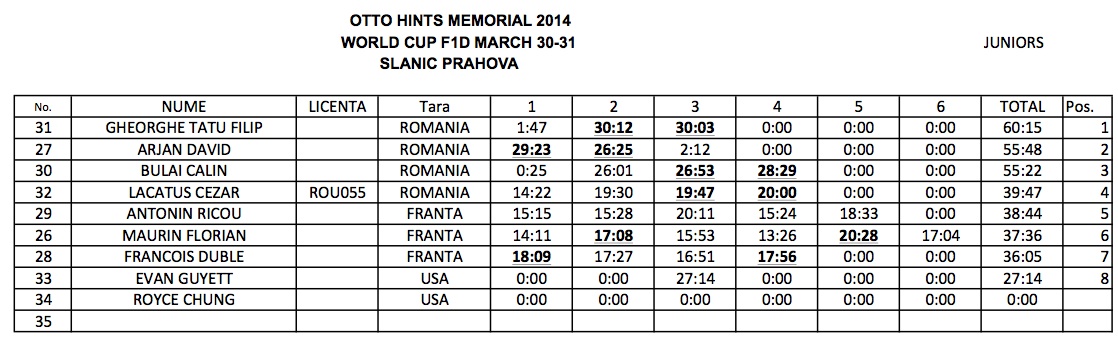

OHS OHJ
