Ivan Treger’s 2017 European Championship F1D

In Uncategorized on March 31, 2017 by nicholasandrewray

Ivan Treger’s 2017 European Championship F1D

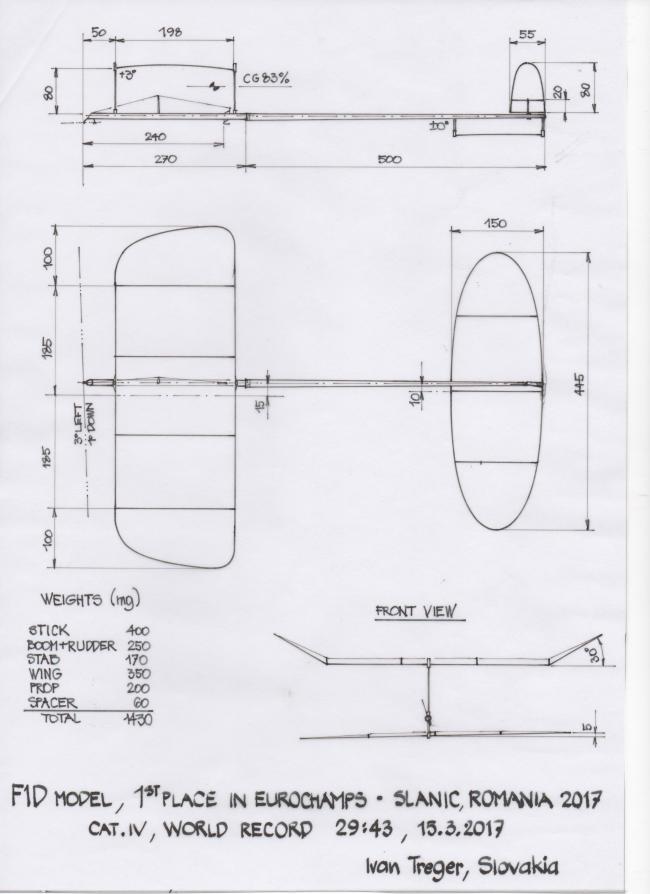

F1D model 001model data 001

Click here to download a PDF of the plan.

Advertisements

3 Responses to “Ivan Treger’s 2017 European Championship F1D”

  1. I do not understand the propeller details. Is it a fixed pitch propeller or does the blade angle just change by just over 1 degree?

    John

  2. Fixed pitch prop and I think the blade wash-out a little at the tip.
